Product Characteristics:

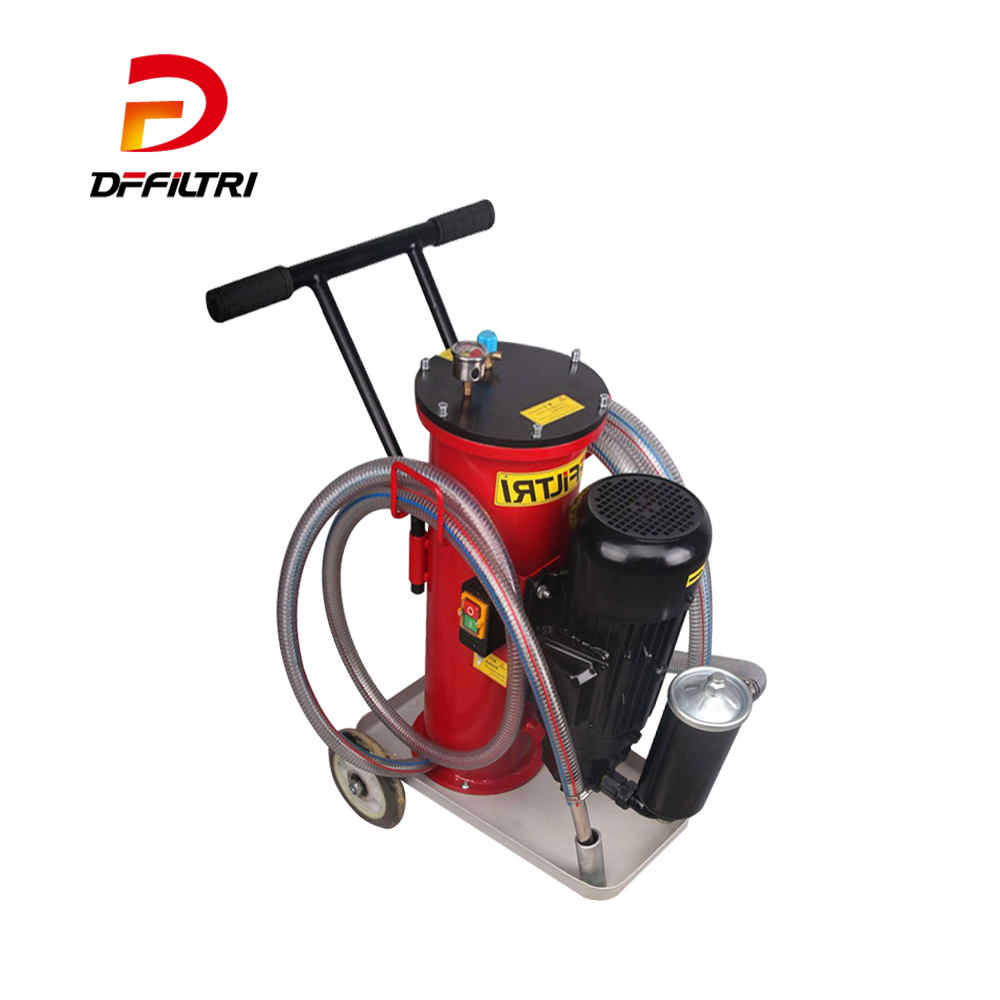

DLYJ series portable mobile filter cart is a new generation oil purification equipment developed by our company. This machine is easy to operate and reliable to use. It is suitable for various hydraulic system, lubrication system,cooling system,static pressure system media (a variety of hydraulic oil, lubricating oil, cooling liquid) filtration, purification, can also be used for refueling or cleaning of low pressure line system .
Product Technical Data:
Model |
Rated flow rate (L/Min)
|
Working pressure |
Filtration rating of rough filter element (um)
|
Filtration rating of fine filter element(um)
|
InitiaI P
|
Motor power/Voltage(KW/V)
|
DLYJ-40 |
40 |
≤0.6Mpa
|
100 |
3、5、10 |
≤0.02Mpa
|
1.5KW/380V |
DLYJ-63 |
60 |
2.2KW/380V |
DLYJ-100 |
100 |
Note: * represents filtration rating.
Filtration rating of fine filter element(μm): Optional 3、5、10、20... βx(c) Optional 75,100,200,1000 in accordance with ISO16889
Working voltage can choose AC 220V,for details, please contact us.
Product Mounting Size:

Overall Dimension
Model
|
Overall size:L*W*H(mm)
|
Drift diameter |
Total weight (kg)
|
Rough filter element |
Fine filter element |
DLYJ-40 |
740x530x770 |
Dn32 Dn25 |
95 |
DLYJ-110*100W |
DLYX40-*BN |
DLYJ-63 |
740x530x870 |
110 |
DLYJ-160*100W |
DLYX60-*BN |
DLYJ-100 |
740x530x970
|
120 |
DLYX100-*BN |
Use&Maintenance
(1)Avoiding the possible counter rotation of the oil pump while starting the machine,otherwise it may lead to the out blown of the axle seal and entering of air.
(2)Air might be introduced into the machine during the operation and will affect the oil flow rate.To ensure the rated flow and normal operation of the fine filter element,the discharge valve should be opened in time to release the air until oil can be seen at the outlet of the discharge valve,then close the discharge valve closed.
(3)After a certain period of operation, coarse filter element could be gradually contaminated and noise of pump might occur,you should stop the machine in order to clean the filter element.
(4)Dirt might block the fine filter element,causing a rise of the pressure in the filter bowl. When the pressure reaches 0.35mpa,the elements should be the changed in time.
(5)The suction and oil outlet tube should always keep clean.
(6)If the pushcart filter can’t supply the oil,please check:
a.Whether the rotating direction of the pump is right;
b.Whether the sealings between the tank and oil inlet are proper;the oil inlet is above the oil surface or oil runs out;
c.If the elements of rough filter are stuck.
(7)If the oil flow distinctly reduced,please check:
a.Whether the rough filter element and fine filter element is stuck with filth.
b.Whether an out blown of the axle seal has occurred due to wear or counter rotation.
(8)If the filtration pressure suddenly drops ,please check the fine filter whether damage or not.
